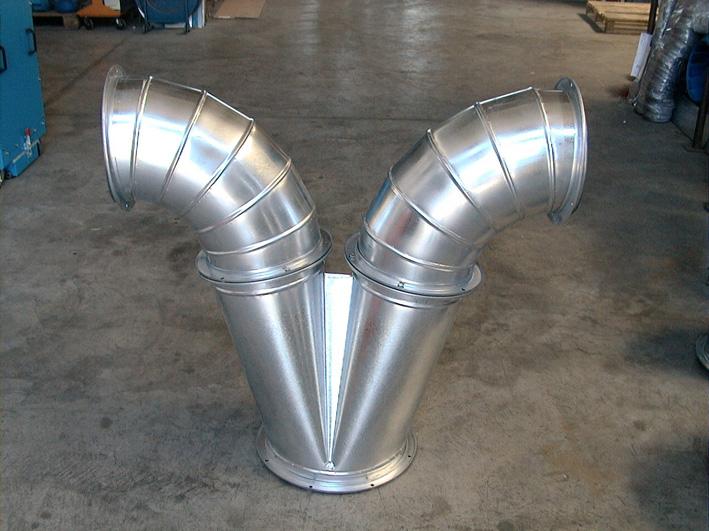

Connector for symmetrical bifurcation of flows, complete with integrated bends to optimize air flow.
The symmetrical deviation with bends represents a solution for evenly splitting an airflow into two identical directions, with integrated bends to maintain a smooth flow profile. This accessory is ideal in systems where balancing air distribution is essential. Materials and finishes are customizable to suit different operating and installation conditions.
The Symmetrical deviation with curves is suitable for industrial processes where it is necessary to contain airborne emissions. Its configuration can be adapted to a single workstation or integrated into an existing extraction system, helping to maintain a more stable and controlled working air environment.
The Symmetrical deviation with curves is designed to capture airborne emissions through a modular filtration system, with filter elements selected to ensure continuous operation. Multiple filtration stages may be used depending on particle size and contaminant concentration.
For the Symmetrical deviation with curves, proper sizing depends on capture distance, intake geometry, and system pressure losses. When available, the indicative range corresponds to the airflow required at the capture point; in any case, it is recommended to verify data at the actual emission source and under operating conditions.
The Symmetrical deviation with curves requires periodic checks of filters, gaskets, and seals, as well as cleaning or replacing filter elements based on workload. For versions with self-cleaning, it is useful to monitor differential pressure and schedule maintenance before performance decreases.
To properly integrate the Symmetrical deviation with curves, attention should be paid to positioning relative to the source, sealing connections, and providing access for inspection and maintenance. It is also important to ensure compatibility with company safety procedures and the characteristics of the contaminants being treated.
