PAINT STOP filter cell

Long fiberglass filter cell with cardboard frame, for paint spray booths.
Technical data sheet
Frequently asked questions

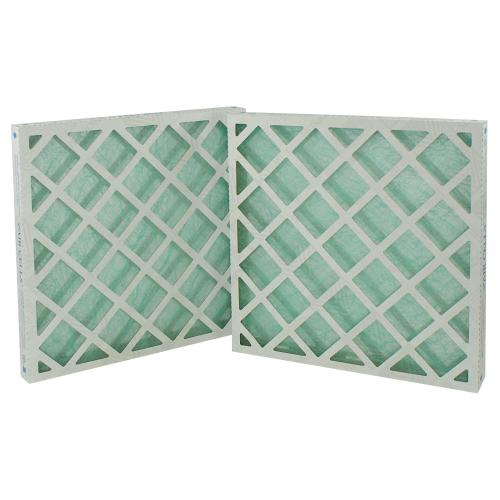

cella filtrante paint stop
Description

The PAINT STOP filter cell is a filtering component made of long fiberglass mounted on a die-cut cardboard frame. With dimensions of 500 × 900 × 98 mm and a G3 classification according to EN 779:2002, it offers a good balance between dust capture capacity and operating pressure drop. The recommended face velocity ranges from 0.5 to 1 m/s, with a dust holding capacity of up to 4,000 g/m², making it suitable for use in paint booths where effective overspray filtration is required during the main extraction stages.

Applications

The filtered pollutants

Fields of application

You might be interested

Other Spray Booth Spare Parts

See all
Spray Booth Spare Parts

PAINT STOP filter cell

Read More
Replacement Filters - Spray Booth Spare Parts

Bulk activated carbon

Read More
Spray Booth Spare Parts

Synthetic filter mat

Read More
Spray Booth Spare Parts

POLYESTER filter cell

Read More
FAQ

The PAINT STOP filter cell is suitable for spray painting applications where it is necessary to contain dust. Its configuration can be adapted to a single workstation or integrated into an existing extraction system, helping to maintain a more stable and controlled working air environment.

The PAINT STOP filter cell is designed to capture dust through a modular filtration system, with filter elements selected to ensure continuous operation. Multiple filtration stages may be used depending on particle size and contaminant concentration.

For the PAINT STOP filter cell, proper sizing depends on capture distance, intake geometry, and system pressure losses. When available, the indicative range corresponds to the airflow required at the capture point; in any case, it is recommended to verify data at the actual emission source and under operating conditions.

The PAINT STOP filter cell requires periodic checks of filters, gaskets, and seals, as well as cleaning or replacing filter elements based on workload. For versions with self-cleaning, it is useful to monitor differential pressure and schedule maintenance before performance decreases.

To properly integrate the PAINT STOP filter cell, attention should be paid to positioning relative to the source, sealing connections, and providing access for inspection and maintenance. It is also important to ensure compatibility with company safety procedures and the characteristics of the contaminants being treated.
