The POLITEX – PAINT STOP filter mat is an effective solution for pre-filtration in painting booths, designed to capture overspray and protect subsequent filtration systems.

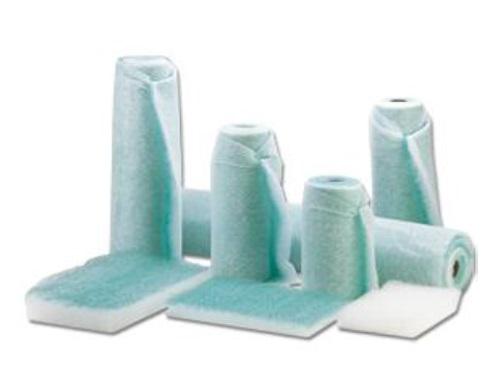

Made of long glass fiber, the POLITEX – PAINT STOP filter mat offers a high dust holding capacity and good resistance to the typical conditions of industrial painting processes. It is available in rolls of 1 x 20 m with a thickness of 55 mm or in custom-sized panels, ensuring installation flexibility in different types of booths.
Classified as G3 according to the EN 779:2002 standard, it has an initial pressure drop of 25 Pa and a recommended final pressure drop of 250 Pa, making it ideal as a pre-filter stage. It supports temperatures up to 180 °C, with a recommended airflow velocity between 0.5 and 1 m/s. The high dust holding capacity, equal to 4,000 g/m², and the flame behavior F1 according to DIN 53438 make this mat a reliable and durable solution for industrial painting booths.
The POLITEX filter mat - PAINT STOP is suitable for spray painting applications where it is necessary to contain dust. Its configuration can be adapted to a single workstation or integrated into an existing extraction system, helping to maintain a more stable and controlled working air environment.
The POLITEX filter mat - PAINT STOP is designed to capture dust through a modular filtration system, with filter elements selected to ensure continuous operation. Multiple filtration stages may be used depending on particle size and contaminant concentration.
For the POLITEX filter mat - PAINT STOP, proper sizing depends on capture distance, intake geometry, and system pressure losses. When available, the indicative range corresponds to the airflow required at the capture point; in any case, it is recommended to verify data at the actual emission source and under operating conditions.
The POLITEX filter mat - PAINT STOP requires periodic checks of filters, gaskets, and seals, as well as cleaning or replacing filter elements based on workload. For versions with self-cleaning, it is useful to monitor differential pressure and schedule maintenance before performance decreases.
To properly integrate the POLITEX filter mat - PAINT STOP, attention should be paid to positioning relative to the source, sealing connections, and providing access for inspection and maintenance. It is also important to ensure compatibility with company safety procedures and the characteristics of the contaminants being treated.
